Therapiestuhl für Blut- und Plasmaspende - Basic Line2 BP

Basic Line2 BP - Therapiestuhl für Blut- und Plasmaspende

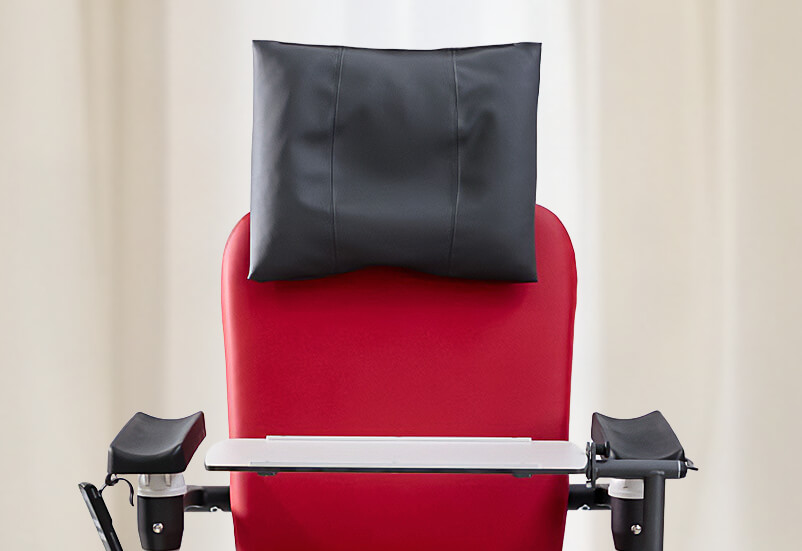

Basic Line2 B&P¹ Blood and plasma
donation

The Basic Line2 B&P features a compact design with sturdy construction and low maintenance requirements. Designed for easy access and patient comfort during blood donations, blood collections, vaccinations or post-operative treatments.

(¹ Corresponds to Basic Line2, Transfusion version)

Basic Line2 B&P Seitenansicht — Thanks to the high-angle leg section, the Basic Line2 B&P can be accessed
from the front – as easily as a chair.

Basic Line 2 B&P is intended for segments where the treatment time is shorter (up to 2 hours) and where getting in and out of the chair is important. A position for easy sitting and standing is stored on the handset, as is the safety position.

Thanks to the high-angle leg section, the Basic Line2 B&P can be accessed from the front – as easily as a chair. The fold-up armrests also offer convenient and safe access from the side.

All Basic Line 2 B&P upholstery is manufactured by hand in Germany to the highest quality standards. The seat, backrest and armrests are upholstered with high-performance foam and provide the patient with a pleasant sitting sensation. The upholstery is particularly comfortable – for that extra bit of comfort.

Already included as standard:

2 drives: Quick and gentle adjustment of back, leg and seat sections. The segments can be adjusted simultaneously (synchronised adjustment of seat and leg section).
The multifunctional armrest can be operated intuitively with just one lever and brings the arm into an optimum position to ensure safe, comfortable and effective blood donation and blood collection.
Armrest and leg section overload protection: in case of overload, the armrest and the flared leg section flex, thus increasing safety and protecting against damage
Independent height-adjustable pillow with one hand
In an emergency, Basic Line2 B&P can be adjusted to a head-down position at the touch of a button.
Easy-to-grip and clearly laid-out handset with mechanical locking mechanism.
Multi-layer high-performance foams and selected upholstery fabrics offer a high level of comfort and support well-being, while at the same time offering excellent durability and dimensional stability even under heavy and continuous use.
75 mm castors, individually braked
Equipotential bonding
Safe working load: up to 175 kg

Presentation of the therapy chair for blood and plasma donation

Centrally operated, multifunctional armrest

The armrest can be adjusted to the desired position with just one lever and even rotated completely so that the patient’s arm can be optimally positioned during blood or plasma donation, blood collection or when carrying out intravenous injections. It is intuitive to use, making it easy to learn even for new employees.

Innovative overload protection

In case of overload, the armrest springs back, increasing safety for patients getting in and out of the chair. At the same time, the overload protection prevents damage and reduces repair costs. An investment that pays off. For the first time, the leg section also has innovative overload protection to prevent damage and reduce costs.

Compact, space-saving design

Basic Line2 B&P is also an excellent solution for small rooms, as they can be used in a space-saving manner.

The compact design of the Basic Line2 B&P allows for a wide range of arrangement options and efficient space utilisation.

Optimised hygiene and pleasant feel

Smooth surfaces and a three-part lying surface ensure quick and easy cleaning, even in the spaces in between. The absence of hook-and-loop fasteners as a fastening method optimises hygiene conditions.

The headrest cushion is also permanently protected from dirt with a PVC protective cover.

The pleasant feel and outstanding material properties ensure long-lasting, easy-care and comfortable use.

Patient sitting in a therapy chair at the blood and plasma donation

In an emergency, Basic Line2 B&P can be adjusted to a head-down position at the touch of a button.

The handset is easily accessible by the patient or donor, and two drives ensure quick and smooth adjustment of the back, leg and seat sections. The segments can be adjusted simultaneously (synchronised adjustment of seat and leg sections).

The Basic Line2 B&P enables a comfortable, slightly reclined posture with slightly raised legs to stabilise circulation.

Head-down position of the Basic Line2 B&P chair

Reclined position in the therapy chair (Figure 1)

Reclined position in the chair (Figure 2)

Functions

75 mm rollers

The patient table makes reading or the use of a mobile phone or tablet possible without requiring additional space.

The armrest is flexibly adjustable for optimum positioning of the arm during blood and plasma donation or blood collection.

position-kissen-therapiestuhl-basic-line2-bp

Donors and patients can move the position of the cushion up or down independently and with one hand.

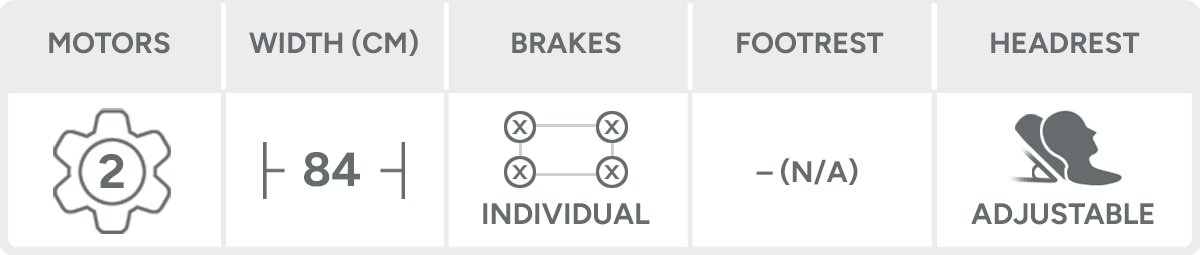

Technical data

Dimensions
Width incl. armrests	84 cm
Width of the seat	58 cm
Total length	158 - 185 cm
Armrests	40 x 12 cm
Total weight	68 kg

Adjustment options
Back section angle	75° – 20°
Seat section angle	25° – 0°
Leg section angle	5° – 73°
Footrest	None

Security
Safe workload	up to 175 kg

Manufacturer
MEDICAL GmbH Medizintechnik, Ravensberger Straße 65, 32278 Kirchlengern, Germany

Distributed by
MEDICAL Sales GmbH & Co. KG, Wilhelmstraße 14 A, 61381 Friedrichsdorf, Germany

Accessories

Paper roll holder

Push handle

Patient table

Equipment table

USB port

Rechargeable battery

Colours

Cover fabric

The high-quality design of the therapy chairs with your choice of upholstery colour makes them an ideal addition to any hospital, clinic or doctor's surgery. A wide range of faux leather colours also helps you to create a pleasant and relaxing atmosphere in your surroundings. The pleasant feel and outstanding material properties ensure long-lasting, easy-care and comfortable use. More information can be found in our colour overview.
